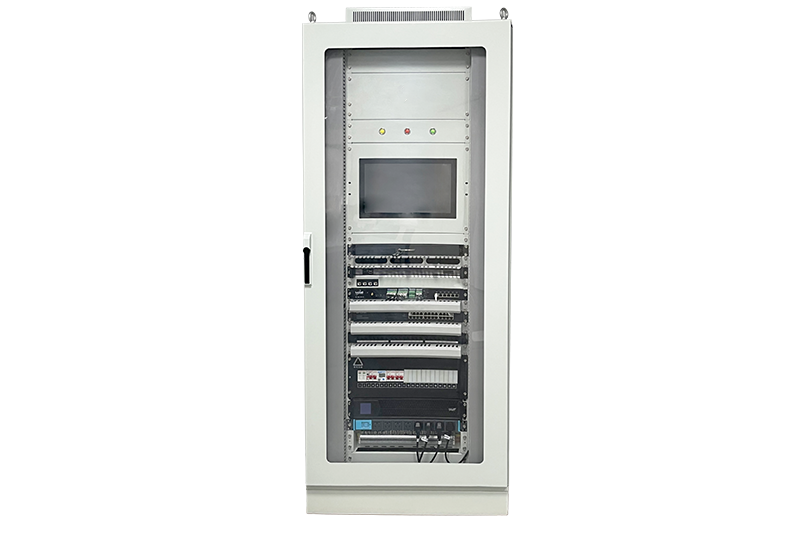

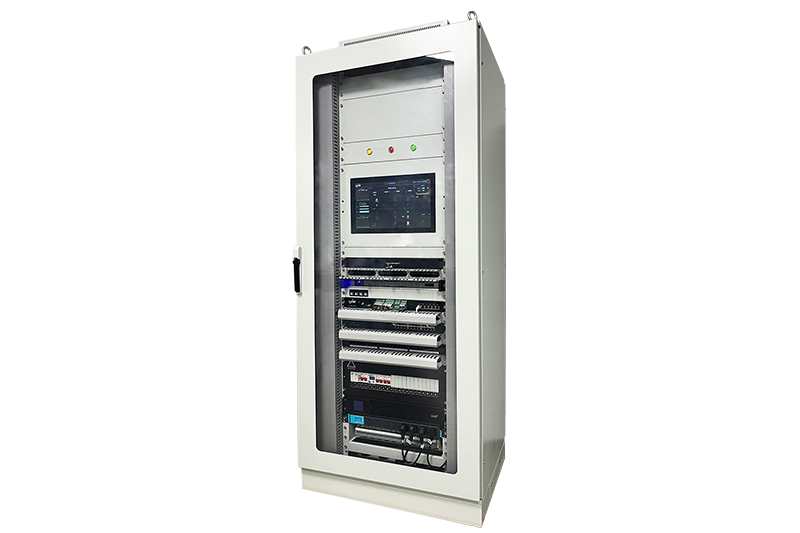

Energy Storage Control Cabinet
WL-SMC-EC is an integrated station control cabinet that combines the key hardware required for on-site energy management and station control. It can integrate the station control server, gateway, HMI, network switch and UPS into a single cabinet, while providing unified power and communication interfaces for Ethernet, RS485, CAN, DI and DO devices. The modular design simplifies deployment, wiring and maintenance across energy storage and microgrid applications.
Product Features
Highly Integrated
· Station control server
· Gateway
· HMI
· Network switch
· UPS
Simplified Deployment
· Unified power distribution
· Unified communication interfaces
· Reduced field wiring
Flexible Connectivity
· Ethernet
· RS485
· CAN
· DI / DO
Multiple Configurations
· V1 / V2 / V3
· Flexible cabinet dimensions
· Suitable for different site requirements
Product Specifications
| Category | Item | Specification |
| Power supply | Voltage | AC 200 ~ 240V / 50Hz |
| Power consumption | ≤ 2kW | |
| Communication support | Communication interfaces | Ethernet, RS485, DI, DO, CAN |
| Communication protocols | Modbus RTU, Modbus TCP, IEC104, DL/T645, OPC UA | |
| General parameters | Protection grade | IP20 |
| WL-SMC-EC-V1 | Rack size | 600(D) × 807.4(W) × 2166.2(H) mm |
| Mounting holes | 735 × 575 (aperture 4-15 × 25) or 600 × 550 (aperture 4-15 × 25) | |
| WL-SMC-EC-V2 | Rack size | 600(D) × 607.4(W) × 1966.2(H) mm |
| Mounting holes | 535 × 575 (aperture 4-15 × 25) or 400 × 550 (aperture 4-15 × 25) | |
| WL-SMC-EC-V3 | Rack size | 800(D) × 607.4(W) × 2166.2(H) mm |
| Mounting holes | 535 × 725 (aperture 4-15 × 25) or 400 × 700 (aperture 4-15 × 25) |
