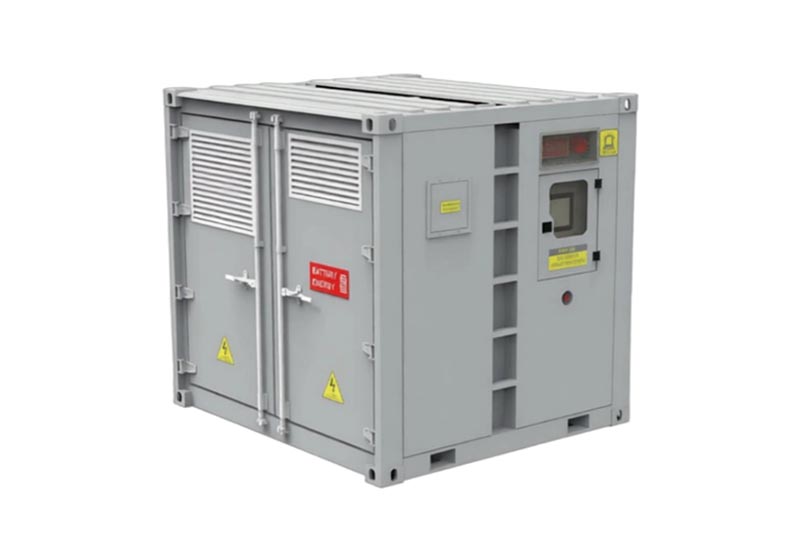

Diesel Generator+ BESS Cabinet
Product Features
Applicable to sudden power interruptions, enhancing the reliability and resilience of the power grid, optimizing resource configuration, reducing energy consumption and emissions, and facilitating synergy with renewable energy, among other benefits
Allows for flexible configuration and management of batteries, offering strong mobility, unrestricted by geographical limitations, and convenient for loading and transportation.
A battery management system featuring a three-level architecture, which provides early safety warnings and effectively ensures safety management and fault isolation for the system.
Cloud-edge collaboration, intelligent and user-friendly, real-time system monitoring, achieving system-level intelligent operation and maintenance management for batteries and electrical systems.
Product Specifications
Model Type | 252kWh | 529kWh | 529kWh |
DC Parameters | |||
Battery Capacity / Type | 3.2V/304Ah/LFP | 3.2V/314Ah/LFP | 3.2V/314Ah/LFP |
Battery Configuration | 1P260S*2 | 1P260S*2 | 1P260S*2 |
DC Voltage Range | 728~949V | 729~949V | 729~949V |
Rated DC Voltage | 832V | 832V | 832V |
Rated Battery Energy | 252kWh | 529kWh | 529kWh |
Charge Rate | 1P | 1P | 0.5P |
Discharge Rate | 1P/2P(short duration) | 1P/2P(short duration) | 0.5/1P(short duration) |
AC (Grid-Tied / Off-Grid) | |||
Max Charge / Discharge Power | 260KW | 520KW | 520KW |
Rated AC Voltage | 400V (-20%~15%) | 400V (-20%~15%) | 400V (-20%~15%) |
Grid Connection | 3L+N+PE | 3L+N+PE | 3L+N+PE |
Rated Output Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
System Parameters | |||
Dimensions (W × D × H) | 2258*1500*2258mm | 2258*2200*2280mm | 2258*2200*2280mm |
Weight | 3.7t | 6.5t | 7.3t |
Protection Rating | IP55 | ||
Corrosion Protection | C4/C5 | ||
Operating Temperature | -25℃~45℃ | ||
Relative Humidity | 0%~95%, RH | ||
Altitude | ≤2000m | ||
Cooling Method | Liquid-Cooling(Pack) | ||
Fire Suppression | Aerosol / Perfluorohexanone (optional) | ||
Compatible Inputs | Diesel Generator, PV, Grid | ||
Protection Functions | Over/Under Voltage, Over/Under Frequency, Overcurrent, Overpower, Overtemperature, Short Circuit, Reverse Polarity Protection | ||
