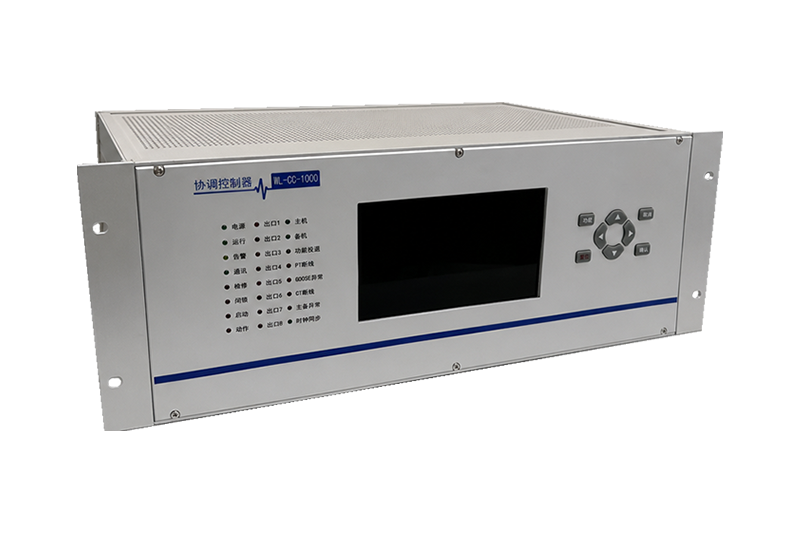

WL-CC-1000
WL-CC-1000 is a grid-level coordination controller designed for utility-scale energy storage and renewable energy power plants. It monitors grid connection point voltage, frequency and power, while coordinating PCS operation based on dispatch commands and power station requirements. With customizable control logic, it enables rapid power response, primary frequency regulation, dynamic reactive power and voltage control, supporting stable and grid-friendly operation of energy storage, solar and wind power plants.
Product Features
Grid Connection Point Control
· Real-time voltage monitoring
· Frequency monitoring
· Active power monitoring
· Reactive power & voltage control
Fast Grid Response
· Primary frequency regulation
· Rapid power response
· Source-grid-load interaction
Flexible Control Logic
· Application-specific control strategies
· Customizable control logic
· Supports different power plant configurations
Multi-Energy Compatibility
· Energy storage
· PV
· Wind power
· Hybrid renewable energy plants
Product Specifications
| Category | Item | Specification |
| System parameters | CPU & Memory & Storage | Quad-core 64-bit Cortex‑A55 CPU, clock speed 1.4 GHz (Up to 1.8 GHz) |
| Onboard 1 GB DDR4 memory, 8 GB onboard eMMC storage | ||
| System & Protocol | Supports Linux and the domestic Kylin operating system | |
| IEC 104, Modbus TCP. The protocol supports access from more than 300 slave stations | ||
| GOOSE. The protocol supports more than 128 PCs. Device access | ||
| Network | Supports dual-network configuration requirements | |
| Supports redundant configuration, with a switching latency of ≤ 100 ms | ||
| Waveform recording | Support Comtrade waveform recording, CSV waveform recording, TXT waveform recording | |
| Monitoring & Task | Support probe installation monitoring | |
| Supports execution of 5 or more periodic tasks, with a minimum task period of 1 ms | ||
| SOE & Alarm | Supports automatic SOE recording with an error ≤ 1 ms | |
| Supports system equipment fault alarms and log queries | ||
| Sampling frequency | The sampling frequency for voltage and current is 4.8 kHz | |
| Structural parameters | Chassis structure | Aluminum alloy, providing excellent shock and impact resistance |
| Surface treatment | Brushed | |
| Color | Silver-white | |
| Weight | ≤ 10kg | |
| Size | 48.26 × 17.7 × 27.8cm (Width × Height × Depth) | |
| Heat dissipation method | Fanless design | |
| Other | Operating temperature | -40℃ ~ 70℃ |
| Operating humidity | ≤ 95% RH (No condensation) | |
| Maximum absolute humidity | 35g/m³ | |
| Atmospheric pressure | 70kPa ~ 106kPa | |
| The chassis protection performance | Protection level shall not be lower than the IP20 level requirements specified in GB/T4208 |
