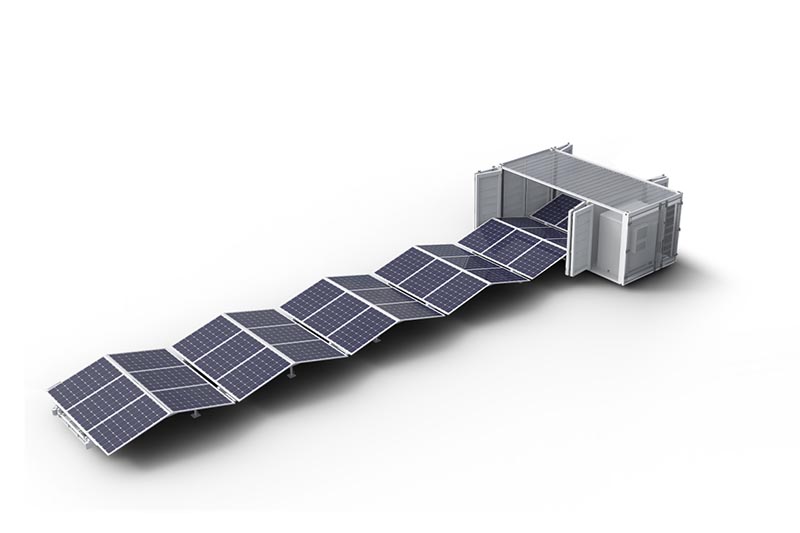

PV+BESS Mobile Power Station
Product Features
Containerized design enables easy transport and one-click deployment on uneven terrain, reducing manpower by 90% and extending system lifespan by 30%.
Compact solar and storage integration saves 30% space, with a bidirectional inverter delivering up to 90% efficiency and retractable PV panels for protection during transport and harsh weather.
Cloud monitoring, AI diagnostics, and predictive maintenance reduce O&M costs by 40% and energy costs by 40–50% over five years compared with diesel generation.
Product Specifications
Model Type | 56kWp+50kW/128kWh |
PV Parameters | |
Rated input power (Wp) | 56,000 |
Max. Input Voltage (V) | 1,000 |
MPPT Operating Voltage Range / Rated Voltage (V) | 150–850 / 600 |
Max. Input Current (A) | 4 × 42 A |
Max. Short-Circuit Current (A) | 4 × 60 A |
Number of MPPTs | 4 |
Strings per MPPT | 2 / 2 / 2 / 2 |
AC Parameters (Grid-Connected Side) | |
Rated Output Power (W) | 50,000 |
Max. Apparent Output Power (VA) | 50,000 |
Max. Input Current (A) | 152 |
Rated Voltage (Vac) | 220/380 V, 3L/N/PE |
Rated Frequency (Hz) | 50 |
Max. Output Current (A) | 76 |
Power Factor Range | >0.99 (0.8 leading ~ 0.8 lagging) |
Total Harmonic Distortion of Current (at Rated Power) (%) | <3 |
AC Parameters (Off-Grid Side) | |
Rated Output Power (W) | 50,000 |
Max. Apparent Output Power (VA) | Capable of delivering 1.6× rated power for 2s and 1.5× rated power for 10s (continuous). |
Rated Voltage (Vac) | 220/380 V, 3L/N/PE |
Rated Frequency (Hz) | 50 |
Total Voltage Harmonic Distortion (THDv) | 2% |
Grid / Off-Grid Switching Time (ms) | <10 |
Battery Parameters | |
Cell Capacity (Ah) | 314 |
Cell Type | LFP (Lithium Iron Phosphate) |
Battery Pack Configuration | 1P16S |
Pack Quantities | 8 |
Battery voltage(V) | 352-460.8 |
Rated Charge / Discharge Rate | 0.5P |
Balancing | Active Balancing |
Rated Energy Capacity (kWh) | 128 |
Dimensions(H*W*D)(mm) | 2220*810*1040 |
Thermal Management System | Air cooling |
Fire Suppression System | Aerosol fire suppression |
General Parameters | |
Operating Temperature Range (°C) | -20 ～ +50 |
Max. Operating Altitude (m) | <2000 |
Protection Rating | IP55 |
Relative Humidity (%) | <95 |
Dimensions (W*D*H) (mm) | 6058*2438*2591 |
Weight (kg) | 14,000 |
