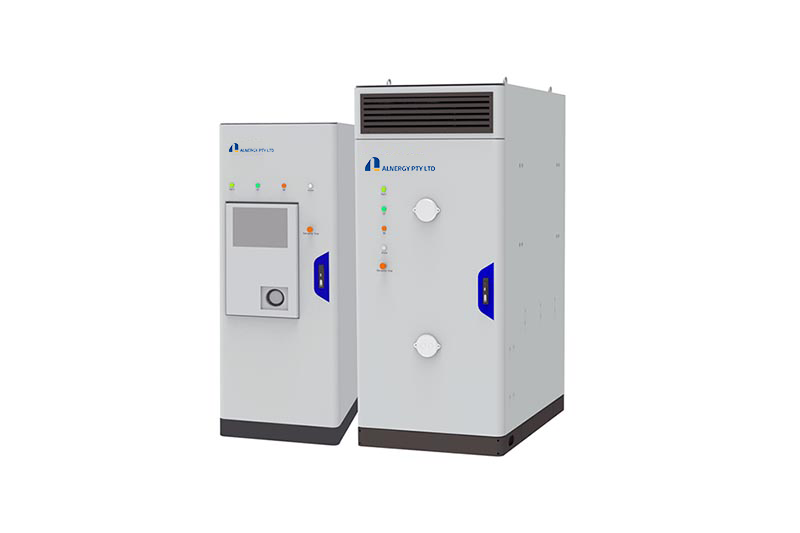

DC Energy Storage Cabinet
Product Features
Millisecond-level raw data sharing (no protocol loss) & microsecond-level coordinated response - enabling real-time protection and dispatch that off-the-shelf integration cannot match.
Balancing strategies and dispatch commands dynamically adapt to each other – from peak shaving to standby mode, the system continuously self-adjusts for maximum efficiency and battery longevity.
One framework for cell-level and system-level fault tracing – reduces field time and increases uptime.100+person strong after-sales team, real human support behind the intelligent system
Product Specifications
Model Type | 128kWh | 261kWh |
Cell Parameters | ||
Cell Capacity | 314Ah | 314Ah |
Cell Type | LFP | LFP |
Pack Parameters | ||
Battery Pack Configuration | 1P16S | 1P52S |
Rated Voltage | 51.2V | 166.4V |
Battery Pack Capacity | 16.07kWh | 52.25kWh |
Balancing | Active Balancing | Active Balancing |
Cabinet Parameters | ||
Battery System Configuration | 1P128S | 1P260S |
No.of Packs | 8 | 5 |
Battery Cabinet Capacity | 128kWh | 261kWh |
Battery Cabinet Voltage Range | 352V-460.8V | 715V-936V |
Rate for Charging /Discharging | 0.5P | 0.5P |
Cabinet Dimensions (H'W'D) | 2220*810*1040mm | 2250*966*1444mm |
Net Weight(KGS) | 1300 | 2280 |
Level of Protection | IP55 | IP55 (Battery Cabinet) |
Relative humidity | 0-95% | 0-95% |
Operating Temperature Range | -20℃-50℃ | -20℃-50℃ |
Cooling Method) | Air-Cooling | Liquid-Cooling |
Fire Extinguishing Agent | Aerosol | Aerosol |
Communication Protocol | Modbus/IEC60870-5-104/MQTT/CAN | Modbus/IEC60870-5-104/MQTT/CAN |
Certification | IEC62619\IEC63056\IEC62477\IEC62040\UN38.3\CE-EMC\CE-LVD | IEC62619\IEC63056\IEC62477\UN38.3\CE-EMC\CE-LVD |
Safety Protection | Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent, Short-Circuit | |
