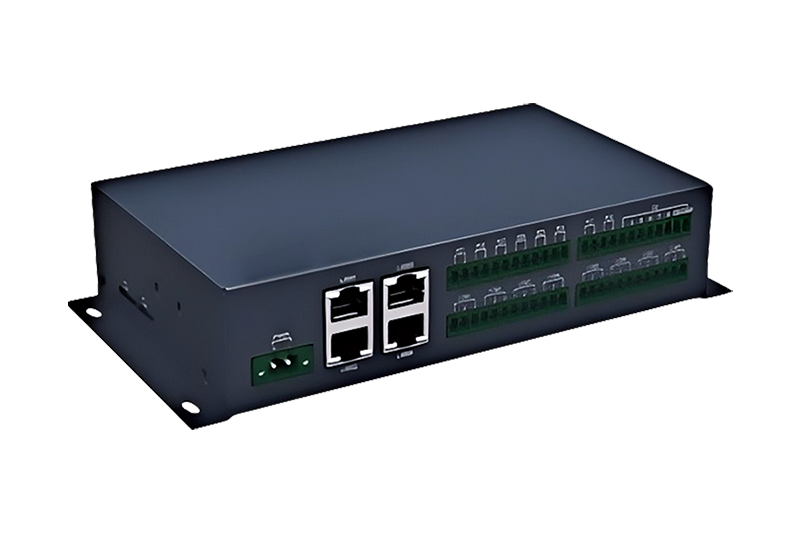

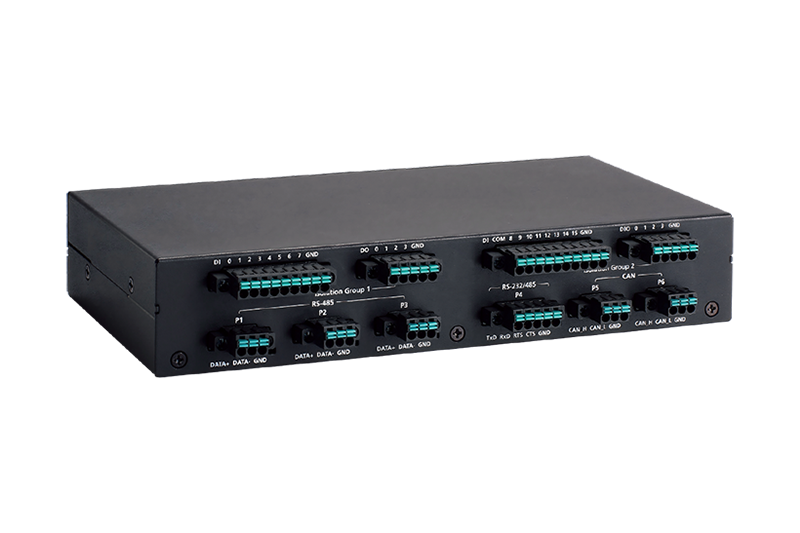

MOXA VM-1220 & ECU1170
The MOXA series controllers are designed for energy storage and microgrid applications, providing reliable edge connectivity, data communication, and device integration for energy management systems. UL certified for reliable deployment in demanding energy applications.
Product Features
Full-Scenario Support
· Designed for diverse energy storage and microgrid applications
· Adaptable to different system architectures and deployment scenarios
Industrial-Grade Reliability
· Wide operating temperature range up to -40°C to 85°C
· Rugged design for demanding energy applications
· UL, CE & FCC certified
Flexible Connectivity
· Up to 8 × RS-485/RS-232
· Up to 4 × Ethernet, supporting Gigabit Ethernet
· 2 × CAN interfaces
Flexible Deployment
· 10–48 VDC input range
· Wall-mount or DIN-rail installation
· Compact form factors for flexible system integration
Product Specifications
| Category | Item | Specification |
| Standard parameters | Certification | CE, FCC, UL |
| Dimensions (W×D×H) | 216 × 39.7 × 115mm (8.50 × 1.56 × 4.53inches) | |
| Input voltage | 12 ~ 48 Vdc | |
| Installation method | Wall-mounted / Rail-mounted installation (with optional kit) | |
| Work environment | Operating temperature | -40 ~ 75℃ (-40 ~ 167°F) |
| Storage temperature | -40 ~ 85℃ (-40 ~ 185°F) | |
| Port | Serial port | 4-way RS-485 |
| Ethernet | 4-way adaptive 10/100 Mbps ethernet | |
| CAN | 2 |
