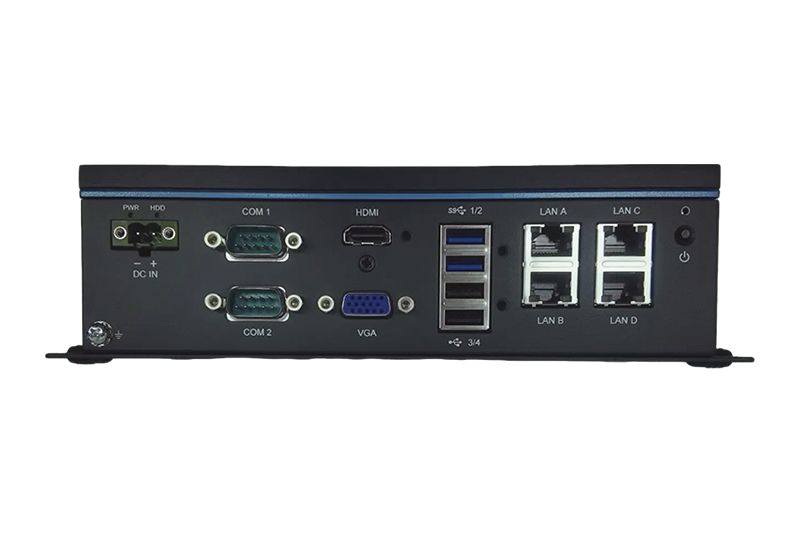

ECU-479F / UNO-247
The Station Control Server provides the computing and deployment infrastructure for on-site energy management and station control systems. Designed for energy storage and microgrid power plants, it supports local data processing, system deployment, equipment management and station-level control, providing a reliable computing platform for continuous operation in demanding industrial environments.
Product Features
· Industrial-grade computing platform
· Local deployment for energy storage & microgrids
· High-capacity storage options
· Rack-mounted and compact form factors
· Wide operating temperature range
· Multiple communication interfaces
Product Specifications (ECU-479F)
| Category | Item | Specification |
| General parameters | Certification | CCC, Level 4 Electricity Standard , CE, FCC, UL |
| Power requirements | Dual power supply configuration, 350W | |
| •Power supply 1: 100~240VAC / 50Hz or 210~280VDC | ||
| •Power supply 2: 100~240VAC / 50Hz or 210~280VDC | ||
| Dimensions (W × D × H) | 440 × 430 × 88mm | |
| Chassis type | SECC and aluminum alloy composite chassis structure | |
| Installation method | 2U rack mount | |
| Total weight | 10.0 kg | |
| Memory | 2 × DDR4 SODIMM RAM with ECC, maximum 64GB | |
| Storage | 4 × 2.5" hot-swappable SATA SSDs, maximum height: 9.5mm | |
| 1 × M.2 2280 M-key NVMe PCIe Gen. 3 × 4 / SATA | ||
| Environmental specifications | Operating temperature | -15 ~ 55℃ (the exact range depends on the CPU model and system configuration) |
| Non-operating temperature | -40 ~ 85℃ |
Product Specifications (UNO-247)
| Category | Item | Specification |
| General parameters | Certification | CE, FCC, UL, CCC |
| Dimensions (W × D × H) | 200 × 140 × 60mm | |
| Volume | Standard size | |
| Shell | Aluminum alloy casing | |
| Installation method | Bracket mounting available; | |
| DIN rail mounting also supported (optional) | ||
| Weight (Net) | 1.2kg (2.6lbs) | |
| Power input | 24VDC (12 ~ 24VDC) | |
| Working environment | Operating temperature | -20 ~ 60℃ |
| Storage temperature | -40 ~ 85℃ (-40 ~ 185°F) | |
| Memory | 1 × slot (DDR5 SO-DIMM support up to 16GB) | |
| Storage | 1 × M.2 B key 2242 SATA | |
| 1 × mSATA or 1 × drive bay for SATA 2.5" SSD (optional) |
