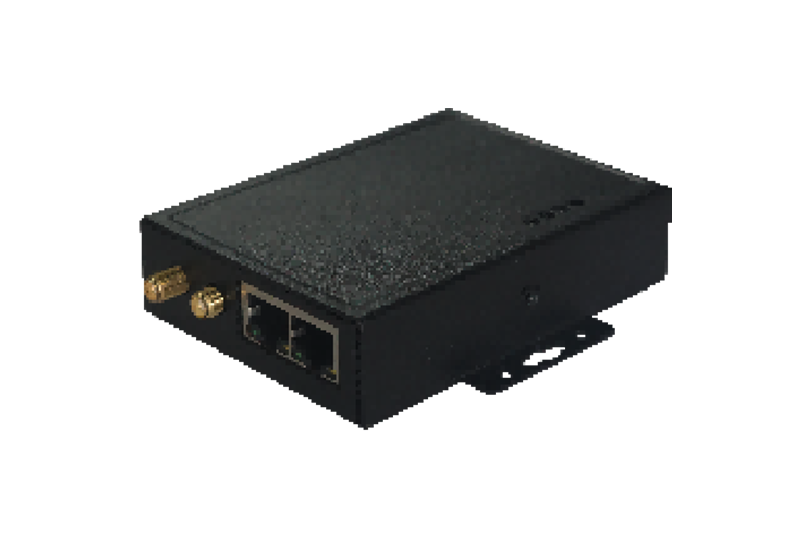

WooLink2102-W-4G
Our Smart Edge Gateway provides a reliable connectivity and computing layer between field devices and energy management platforms. Designed for energy storage and industrial energy applications, it enables multi-device communication, real-time data acquisition, local processing, data storage and remote device management. With flexible network and communication interfaces, it simplifies system integration while enabling seamless cloud-edge collaboration.
Product Features
Seamless Device Connectivity
· RS485 / Ethernet / DI / DO interfaces
· Supports multiple field devices and protocols
· Simplifies device access and integration
Edge Computing
· Local data processing
· Data storage and forwarding
· Local device linkage and control
Flexible Networking
· 4G connectivity
· Ethernet
· 2.4G Wi-Fi
· Multiple network configurations
Remote O&M
· Remote device management
· Network transmission management
· Remote system maintenance
Industrial Reliability
· Industrial-grade hardware
· Wide operating temperature range
· Compact design for flexible deployment
Product Specifications
| Category | Item | Specification |
| Product name | WooLink2102-W-4G | - |
| Network mode | 4G (Optional) | According to user requirements, different modules can be selected to support different network modes |
| Power supply | 9-24V / 1.5A DC | - |
| Operating power | 3W | - |
| Hardware parameters | 32-bit Industrial CPU | MIPS24KEc 580MHz |
| RAM | 128MB DDR2 | |
| Flash | 32MB NOR | |
| Communication interface | Fast ethernet WAN | 1 Port 10 / 100 M Auto-negotiation (RJ45) |
| Fast ethernet LAN | 1 Port 10 / 100 M Auto-negotiation (RJ45) | |
| 2.4G Wi-Fi | Supports IEEE802.11b/g/n/ac, 2.4G 300M, supports AP, station, mesh working modes | |
| Industrial serial port | 2 RS485 ports | |
| Industrial I/O | 1 DI, 1 DO | |
| Other | MTBF | > 100000hours |
| Operating temperature | -40℃ ~ 75℃ | |
| Storage temperature | -45℃ ~ 85℃ | |
| Operating humidity | ≤ 95% RH (No condensation) | |
| Product dimensions (without bracket) | 100 × 90 × 25mm |
