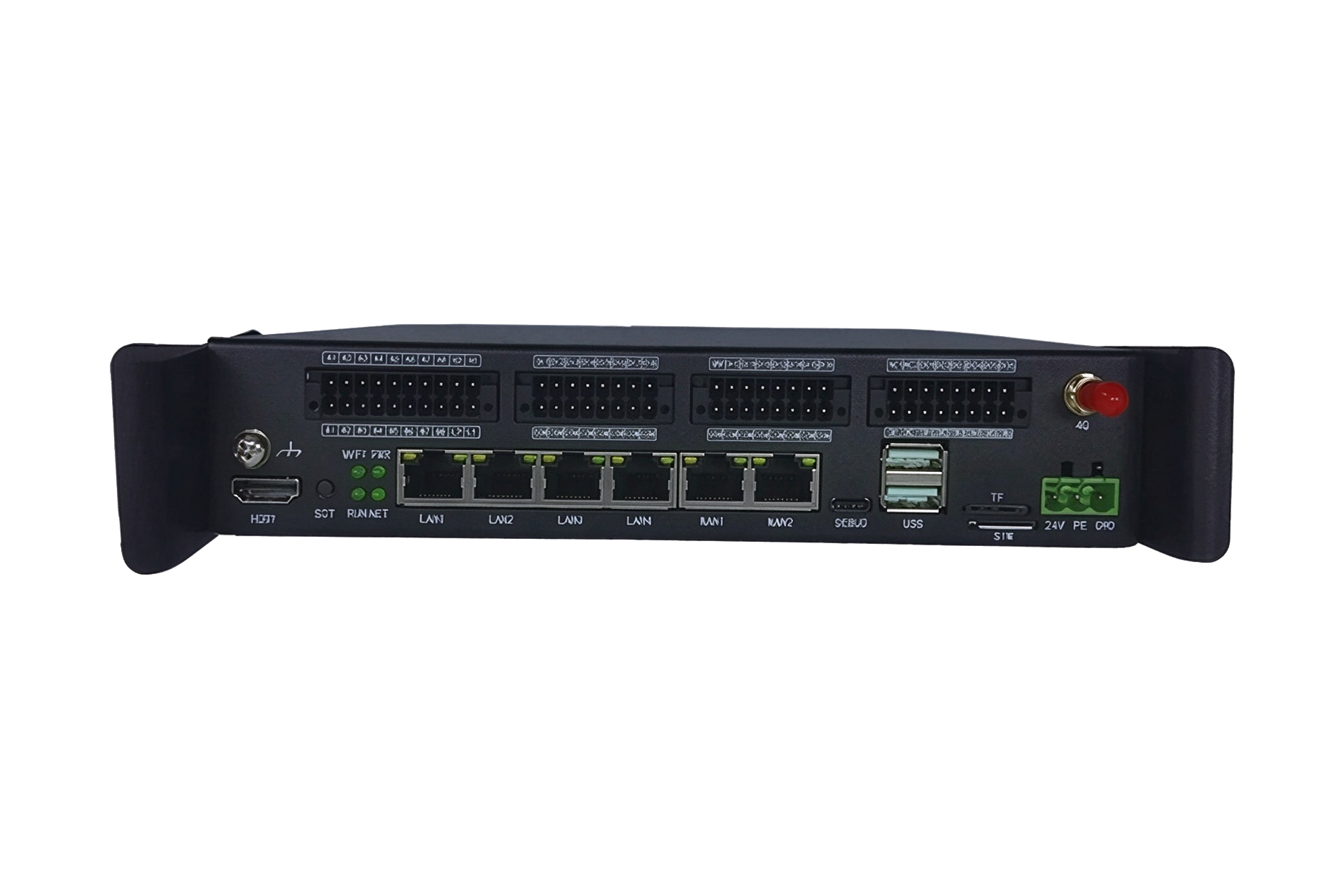

WL-CC-500
WL-CC-500 is a station-level coordination controller designed to manage multiple parallel energy storage cabinets in large-scale and containerized BESS applications. Acting as the master controller, it coordinates local controllers, PCS and BMS across multiple cabinets, enabling real-time monitoring, power allocation and coordinated charging/discharging. It supports advanced control functions such as primary frequency regulation and demand response for efficient and stable power station operation.
Product Features
Multi-Cabinet Master Control
· Centralized coordination of multiple cabinets
· Master controller for containerized BESS
· Real-time system-level monitoring
Dynamic Power Allocation
· Multi-objective optimization
· Coordinated charging/discharging
Real-time power distribution
· Grid Support
· Primary frequency regulation
· Demand response
· Fast coordinated control
Open Integration
· BMS / PCS integration
· Ethernet / RS485 / CAN
· Compatible with third-party platforms
Product Specifications
| Category | Item | Specification |
| Product Name | EMS Coordination Controller | WL-CC-500 |
| Power supply | DC 24V/1A or DC 12V/2A | Reference power supply range DC 12V ~ 36V |
| Operating power consumption | Average 10W | Full load operation ＜ 15W |
| Hardware parameters | ARM industrial-grade CPU | 4 cores 1.8 GHz |
| 8 GB eMMC storage | Onboard 8GB storage | |
| 2GB LPDDR4 | Onboard 2GB memory | |
| 256GB harddisk | Onboard 256GB harddisk | |
| Shelf size | 25.7 × 18.5 × 4.5cm (L×W×H) | |
| Main unit size | 21 × 16.5 × 4.5cm (L×W×H) | |
| Approximate weight | 1.4Kg | |
| Communication interface | Wireless (Optional) | Supports full network 4G Cat 1 |
| Ethernet | 2-way WAN, 4-way LAN | |
| Industrial serial port | 8-way RS485 | |
| CAN | 2 | |
| DI | 16 | |
| DO | 8 | |
| Other | Operating temperature | -20℃ ~ 60℃ |
| Storage temperature | -40℃ ~ 85℃ | |
| Operating humidity | ≤ 95% RH (No condensation) | |
| Test certificate | TUV/CE、RoHS2.0 |
