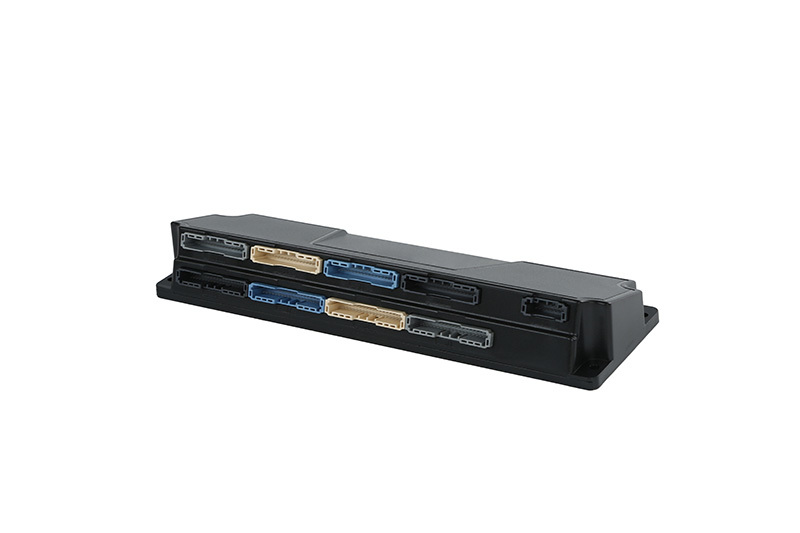

BMU (Module-Level Management) -Passive Balancing
The Passive Balancing BMU measures individual cell voltage and temperature for real-time battery monitoring. It dissipates excess energy from higher-voltage cells through resistive balancing to improve cell consistency, safety and service life. Daisy-chain or CAN interfaces enable communication between BMUs and data transmission to the BCU.

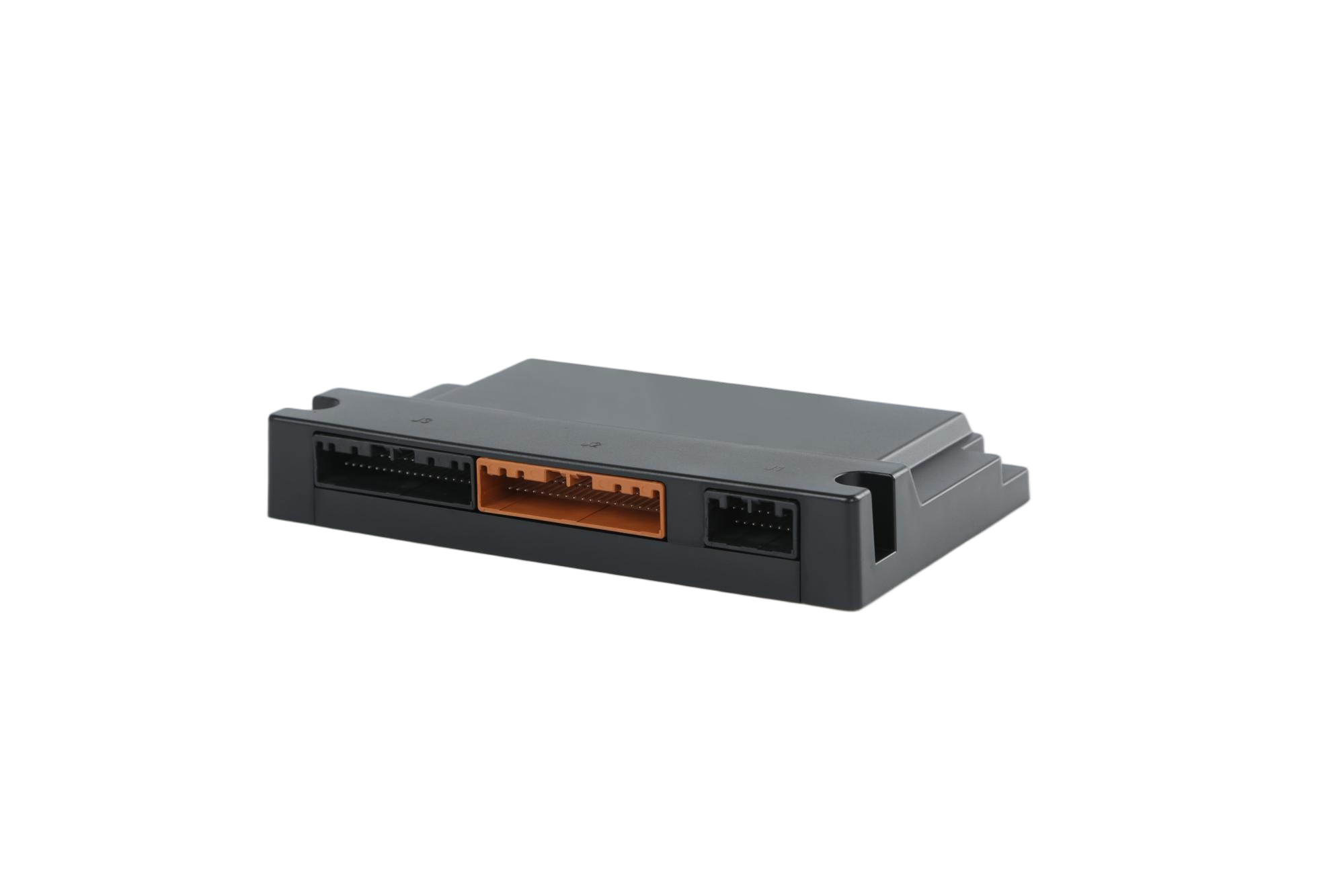

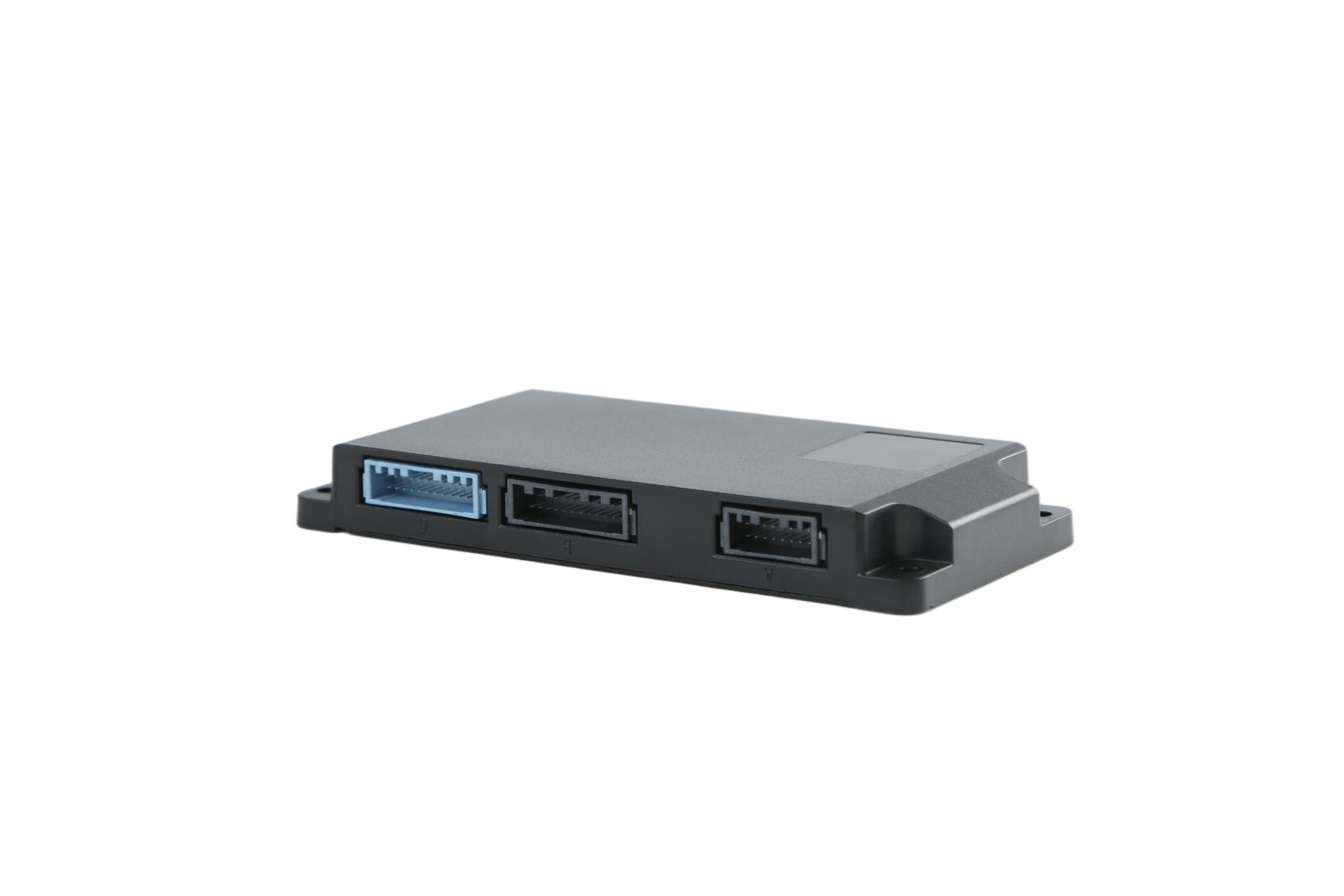

BMU-B30-16-504
BMU-B30-16-508

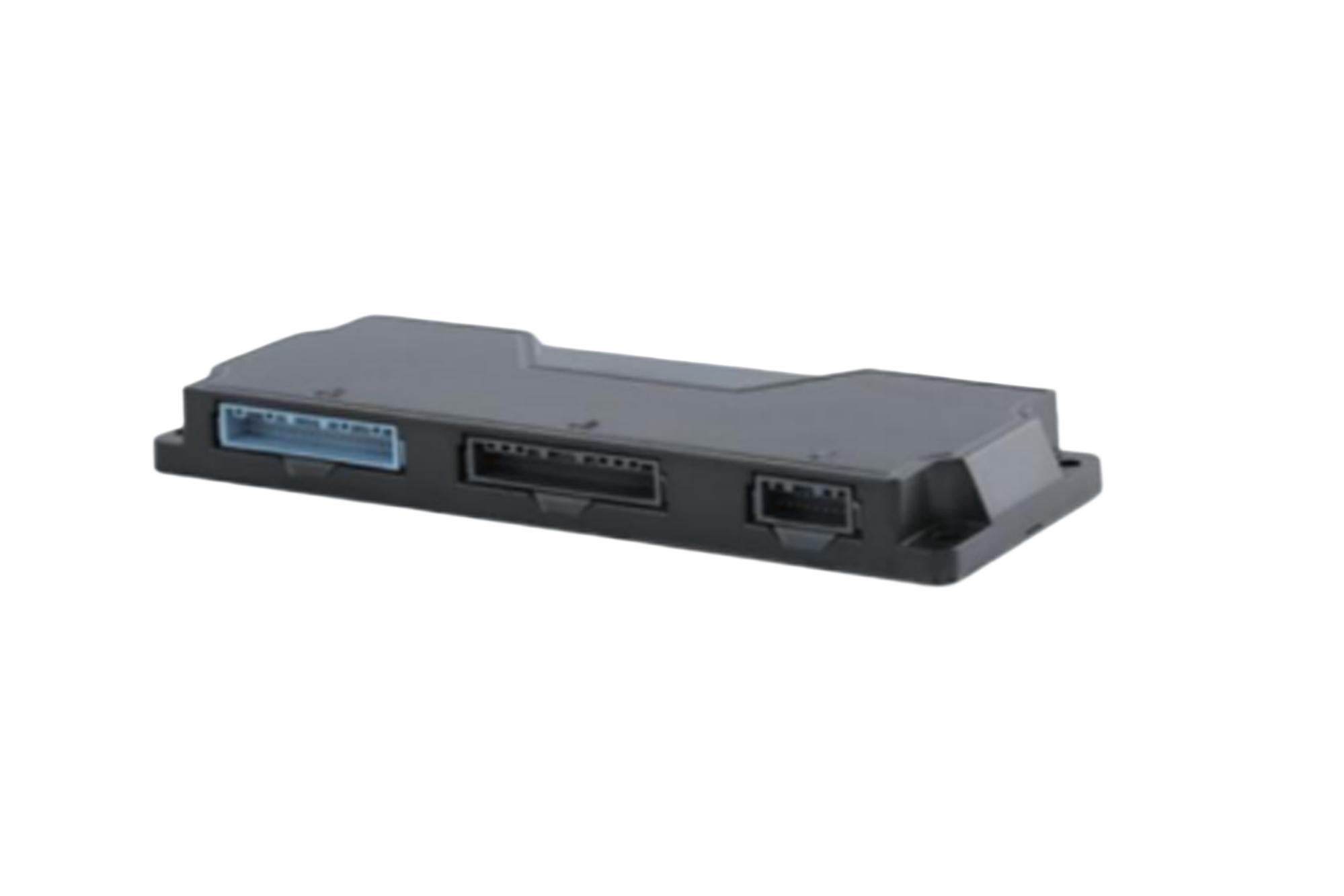

BMU-B30-26-508

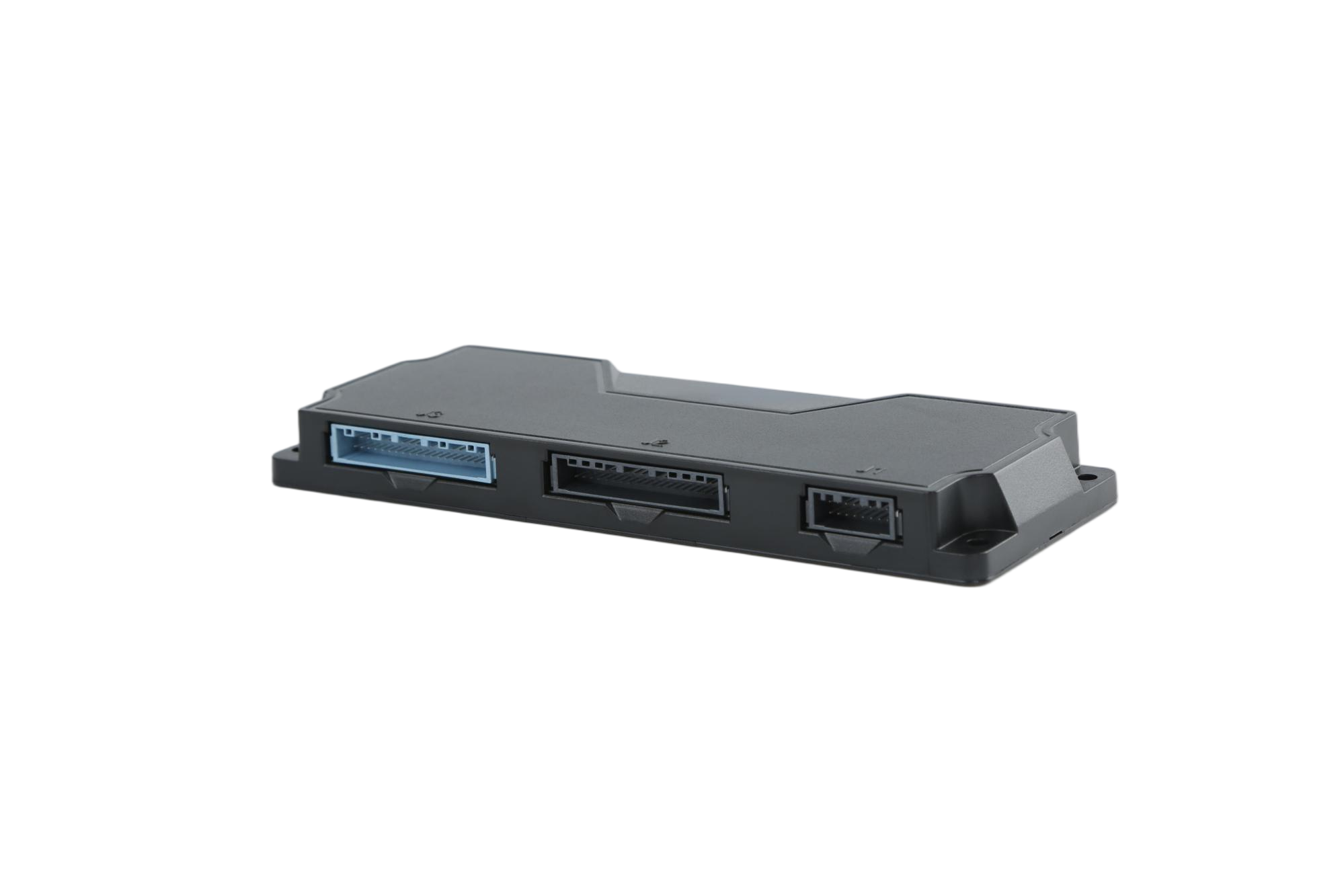

BMU-B30-32-508

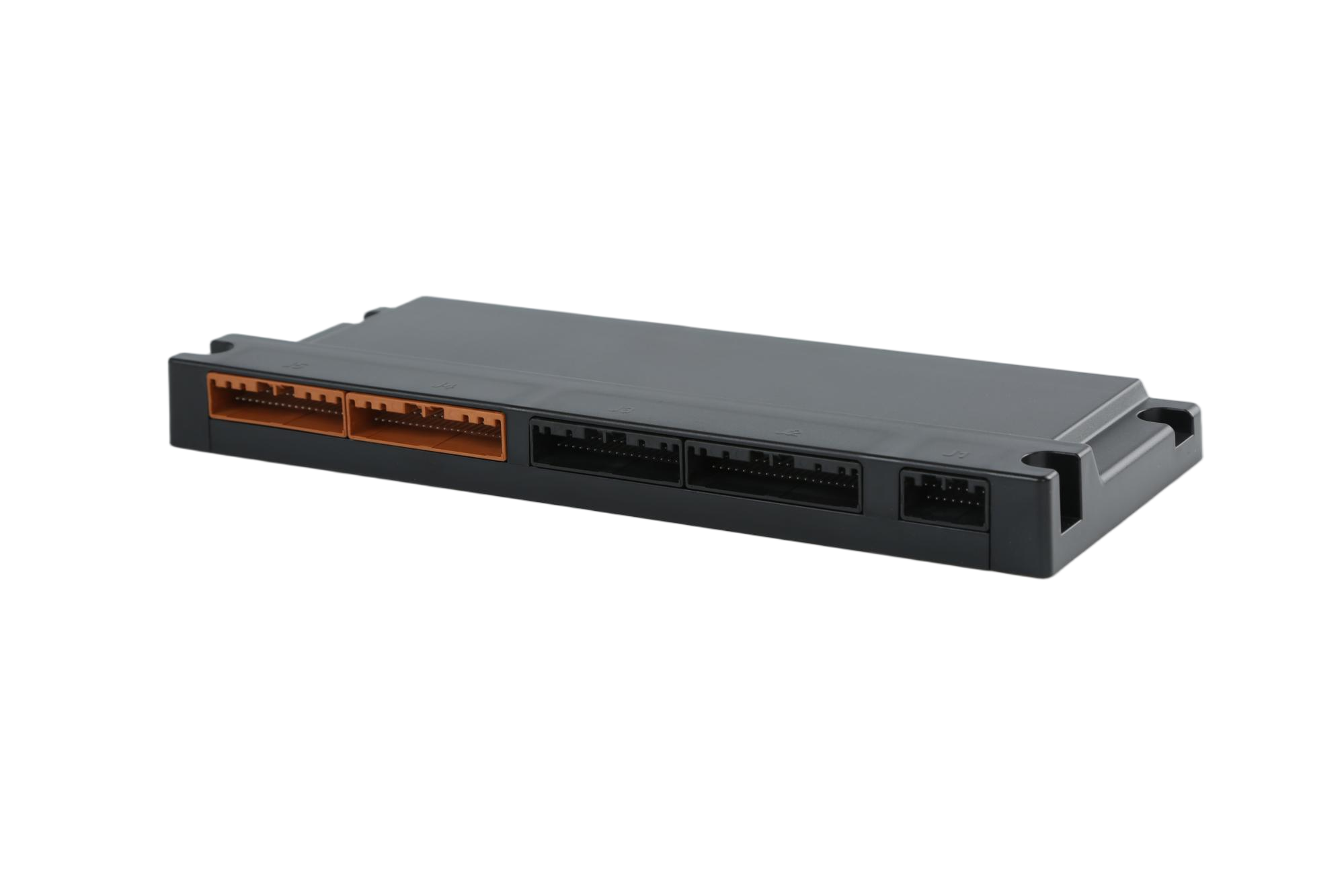

BMU-B30-64-504

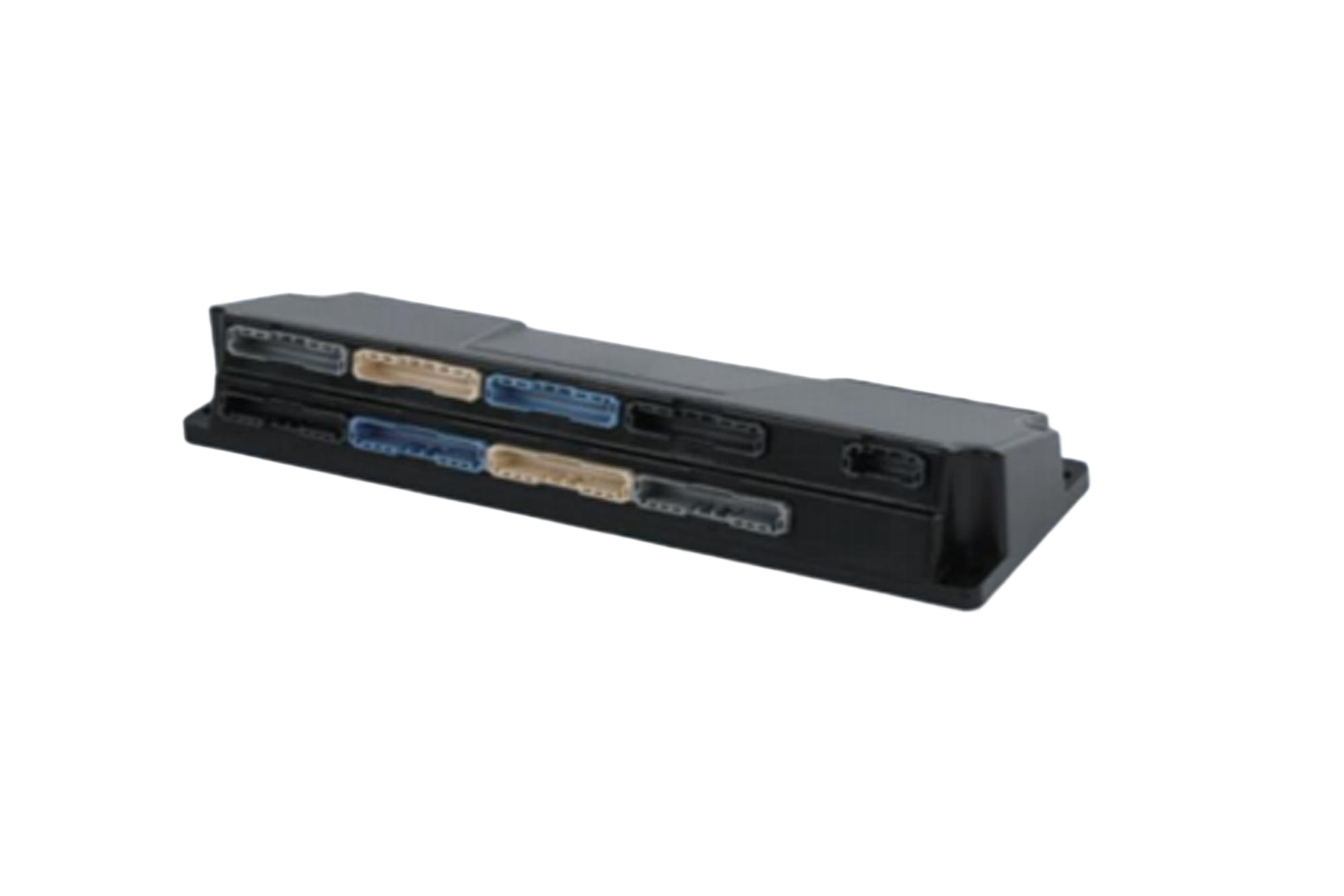

BMU-B30-104-508

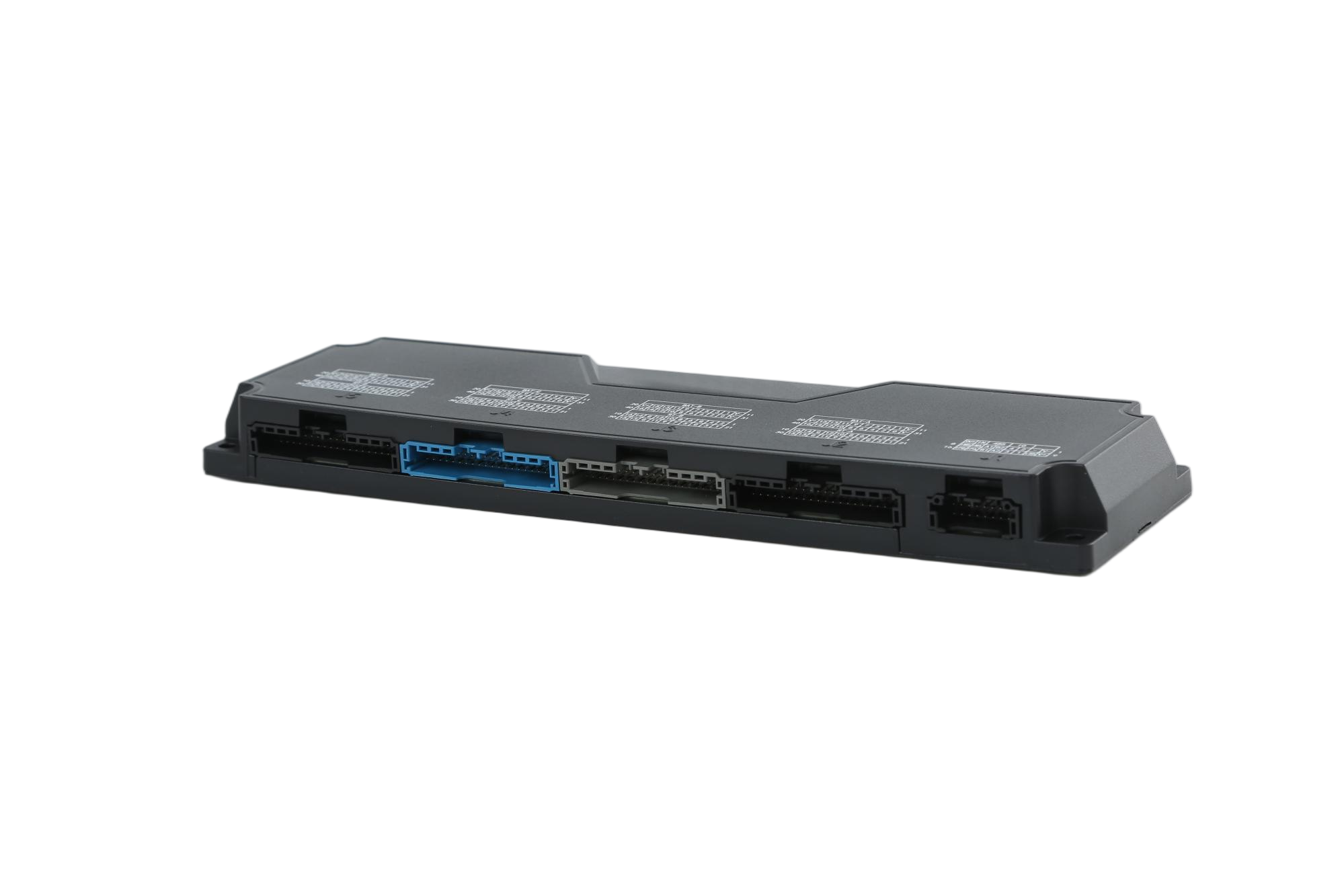

BMU-B30-64-508

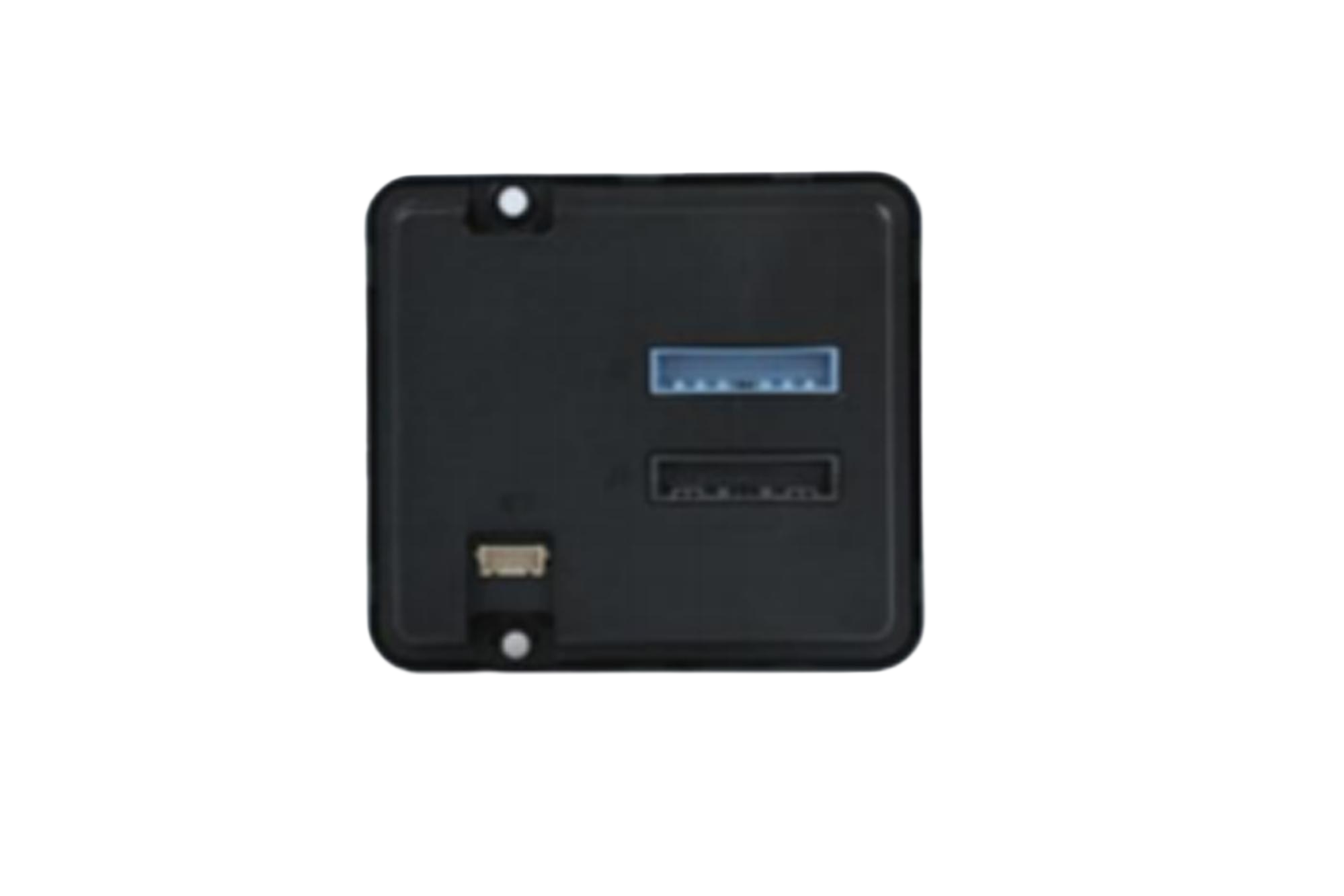

BMU-B30-16-507
Product Specifications
| Model | BMU-B30-16-504 | BMU-B30-16-508 | BMU-B30-26-508 | BMU-B30-32-508 | BMU-B30-64-504 |
| Safety Grade | Rated isolation voltage: 1500VDC; Withstand voltage test: 3100VAC / 4380VDC | same | same | same | same |
| Mounting Type | Built-in (internal mounting) | same | same | same | same |
| Voltage Channels | 8~16 | 8~16 | 16~26 | 16~32 | 32~64 |
| Voltage Acquisition Accuracy | Range: 0~5V; Accuracy: ±3mV @ 2.5V~4.5V, ±5mV for the rest | same | same | same | same |
| Temperature Channels | 18 | 18 | 16 | 32 | 52 |
| Temperature Detection Accuracy | -40~125°C, compatible with 10K & 100K NTC | same | same | same | same |
| Balancing Current | ≤100 mA @ 3.3V | same | same | same | same |
| Communication Interface | Daisy-chain (for CAN communication, please contact technical support) | same | same | same | same |
| DI Channels | 2 | 2 | 0 | 2 | 2 |
| DO Channels | 2 | 1 | 0 | 1 | 1 |
| Altitude | ≤4000 m | same | same | same | same |
| Connector Quantity | YXT: 16 / 40 / 36 | YXT: 16 / 24 / 24 | YXT: 5 / 36 / 36 | YXT: 16 / 40 / 40 | YXT: 16 / 36×2 / 40×2 |
| Dimensions | 160 mm × 95 mm × 25.5 mm | 150 mm × 70 mm × 19 mm | 90 mm × 80 mm × 45 mm | 190 mm × 70 mm × 19 mm | 265 mm × 105 mm × 25 mm |
| Model | BMU-B30-64-508 | BMU-B30-104-508 | BMU-B30-16-507 | BMU-B30-26-507 | BMU-B30-32-507 |
| Safety Grade | Rated isolation voltage: 1500VDC; Withstand voltage test: 3100VAC / 4380VDC | same | same | same | same |
| Mounting Type | Built-in | Built-in | External (surface-mount / externally mounted) | External | External |
| Voltage Channels | 32~64 | 64~104 | 8~16 | 16~26 | 16~32 |
| Voltage Acquisition Accuracy | Range: 0~5V; Accuracy: ±3mV @ 2.5V~4.5V, ±5mV for the rest | same | same | same | same |
| Temperature Channels | 56 | 112 | 18 | 28 | 16 |
| Temperature Detection Accuracy | -40~125°C, compatible with 10K & 100K NTC | same | same | same | same |
| Balancing Current | ≤100 mA @ 3.3V | same | same | same | same |
| Communication Interface | Daisy-chain (for CAN communication, please contact technical support) | same | same | same | same |
| DI Channels | 2 | 2 | 1 | 1 | 1 |
| DO Channels | 1 | 1 | 1 | 1 | 1 |
| Altitude | ≤4000 m | same | same | same | same |
| Connector Quantity | LOTES: 16 / 40×4 | YXT: 16 / 36×4 / 40×4 | YXT: 10 / 10 / 24 / 24 | YXT: 10 / 10 / 32 / 32 | YXT: 10 / 10 / 32 / 32 |
| Dimensions | 258 mm × 72 mm × 23 mm | 265 mm × 80 mm × 40 mm | 100 mm × 100 mm × 25.8 mm | 112 mm × 100 mm × 25.8 mm | 112 mm × 100 mm × 25.8 mm |
